Products
E301/E302/E313
|
Series |
K2 series |
|
Item code |
E301/E302/E313 |
|
Description |
1 gang 1 way switch / 1 gang 2 way switch / 1 gang intermediate switch |
|
Color |
White Gold Gray Black |
|
Current |
16A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
Red copper bush, red copper stamping part, red copper bus bar, Φ4mm×0.35mm silver touch point |
|
Socket inside material |
/ |
|
|
|
|
Standard |
IEC 60669 |
|
Product lifetime |
Max 200,000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |
E303/E304
|
Series |
K2 series |
|
Item code |
E303/E304 |
|
Description |
2 gang 1 way switch / 2 gang 2 way switch |
|
Color |
White Gold Gray Black |
|
Current |
16A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
Red copper bush, red copper stamping part, red copper bus bar, Φ4mm×0.35mm silver touch point |
|
Socket inside material |
/ |
|
|
|
|
Standard |
IEC 60669 |
|
Product lifetime |
Max 200,000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |
E305/E306
|
Series |
K2 series |
|
Item code |
E305/E306 |
|
Description |
3 gang 1 way switch /3 gang 2 way switch |
|
Color |
White Gold Gray Black |
|
Current |
16A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
Red copper bush, red copper stamping part, red copper bus bar, Φ4mm×0.35mm silver touch point |
|
Socket inside material |
/ |
|
|
|
|
Standard |
IEC 60669 |
|
Product lifetime |
Max 200,000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |

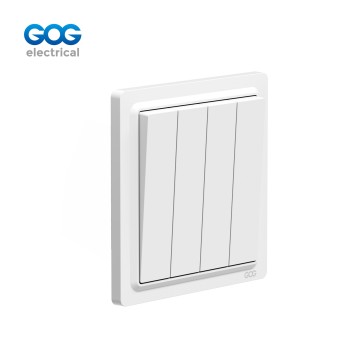

E307/E308
|
Series |
K2 series |
|
Item code |
E307/E308 |
|
Description |
4 gang 1 way switch / 4 gang 2 way switch |
|
Color |
White Gold Gray Black |
|
Current |
16A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
Red copper bush, red copper stamping part, red copper bus bar, Φ4mm×0.35mm silver touch point |
|
Socket inside material |
/ |
|
|
|
|
Standard |
IEC 60669 |
|
Product lifetime |
Max 200,000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |

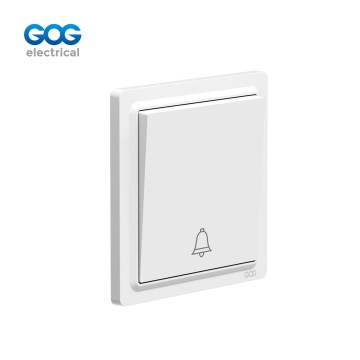

E317
|
Series |
K2 series |
|
Item code |
E317 |
|
Description |
Doorbell switch |
|
Color |
White Gold Gray Black |
|
Current |
16A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
Red copper bush, red copper stamping part, red copper bus bar, Φ4mm×0.35mm silver touch point |
|
Socket inside material |
/ |
|
|
|
|
Standard |
IEC 60669 |
|
Product lifetime |
Max 200,000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |

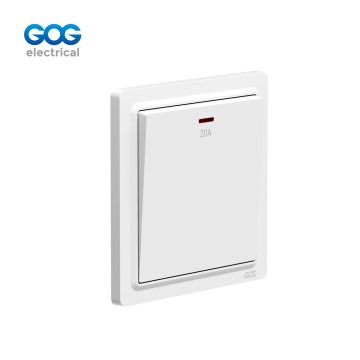

E324
|
Series |
K2 series |
|
Item code |
E324 |
|
Description |
20A DP switch, neon |
|
Color |
White Gold Gray Black |
|
Current |
20A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
Red copper bush, red copper stamping part, red copper bus bar, Φ4mm×0.35mm silver touch point |
|
Socket inside material |
/ |
|
|
|
|
Standard |
IEC 60669 |
|
Product lifetime |
10,000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |
E327
|
Series |
K2 series |
|
Item code |
E327 |
|
Description |
45A DP switch, neon |
|
Color |
White Gold Gray Black |
|
Current |
45A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
Red copper bush, red copper stamping part, red copper bus bar, Φ5.5mm silver touch point |
|
Socket inside material |
/ |
|
|
|
|
Standard |
IEC 60669 |
|
Product lifetime |
10,000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |

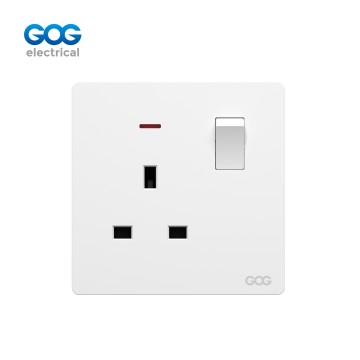

E407
|
Series |
K2 series |
|
Item code |
E407 |
|
Description |
13A switched socket with neon, SP |
|
Color |
White Gold Gray Black |
|
Current |
13A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
/ |
|
Socket inside material |
High purity 62 brass material 0.7 mm,integrated structure copper |
|
|
|
|
Standard |
IEC60884/BS1363 |
|
Product lifetime |
30000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |

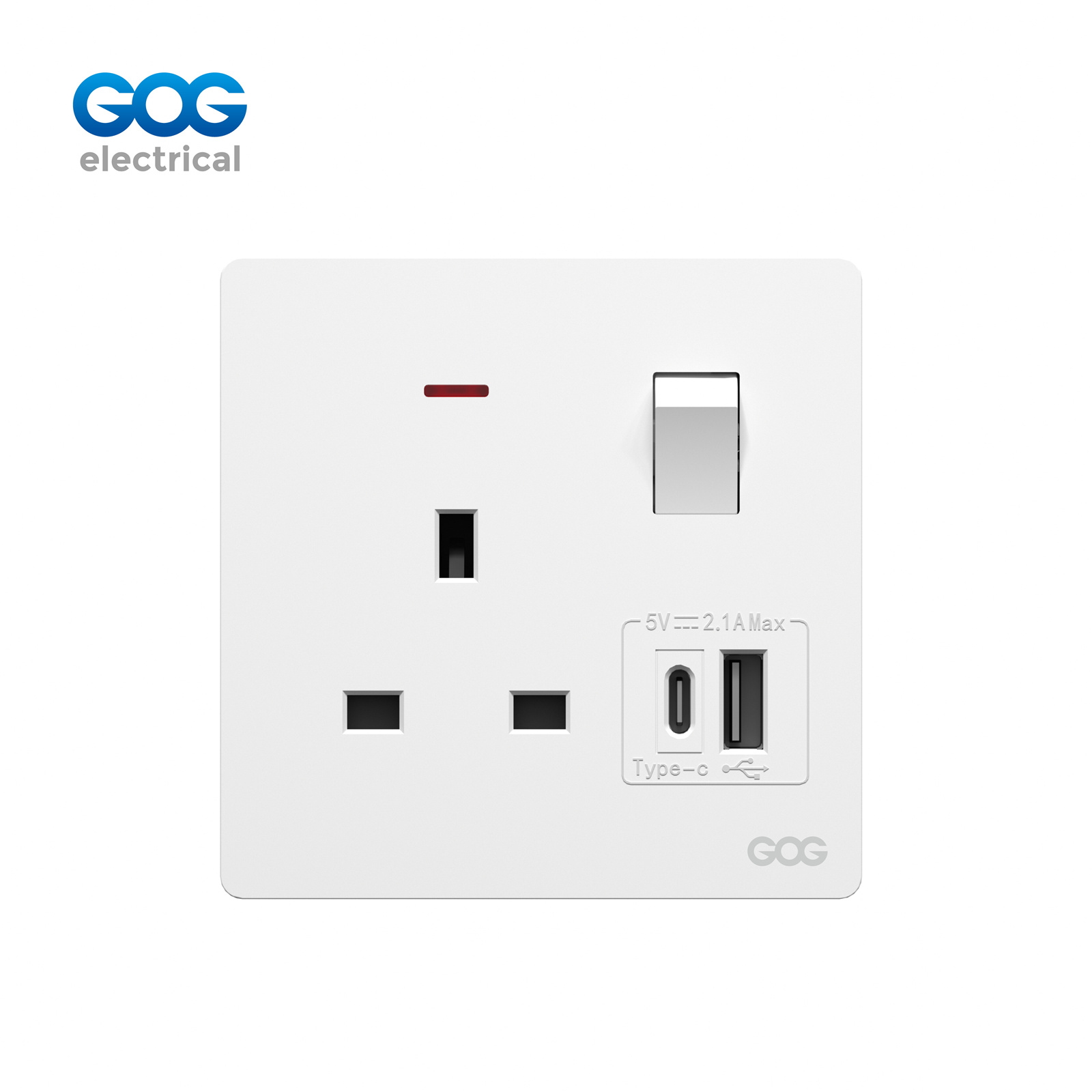

E491C
|
Series |
K2 series |
|
Item code |
E491C |
|
Description |
13A 1 gang DP switched socket, 1 USB + 1 type C, neon |
|
Color |
White Gold Gray Black |
|
Current |
13A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
/ |
|
Socket inside material |
High purity 62 brass material 0.7 mm,integrated structure copper |
|
|
|
|
Standard |
IEC60884/BS1363/IEC61000-1:2016/IEC62680 |
|
Product lifetime |
30000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |

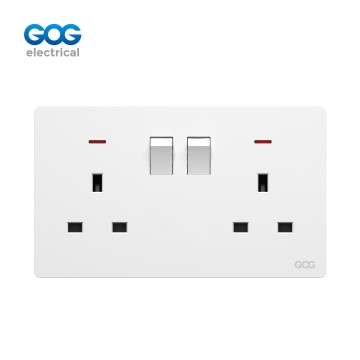

E408
|
Series |
K2 series |
|
Item code |
E408 |
|
Description |
13A 2 gang switched socket, neon |
|
Color |
White Gold Gray Black |
|
Current |
13A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 146mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
/ |
|
Socket inside material |
High purity 62 brass material 0.7 mm,integrated structure copper |
|
|
|
|
Standard |
IEC60884/BS1363 |
|
Product lifetime |
30000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 5pcs in inner box, 50pcs in outer carton |

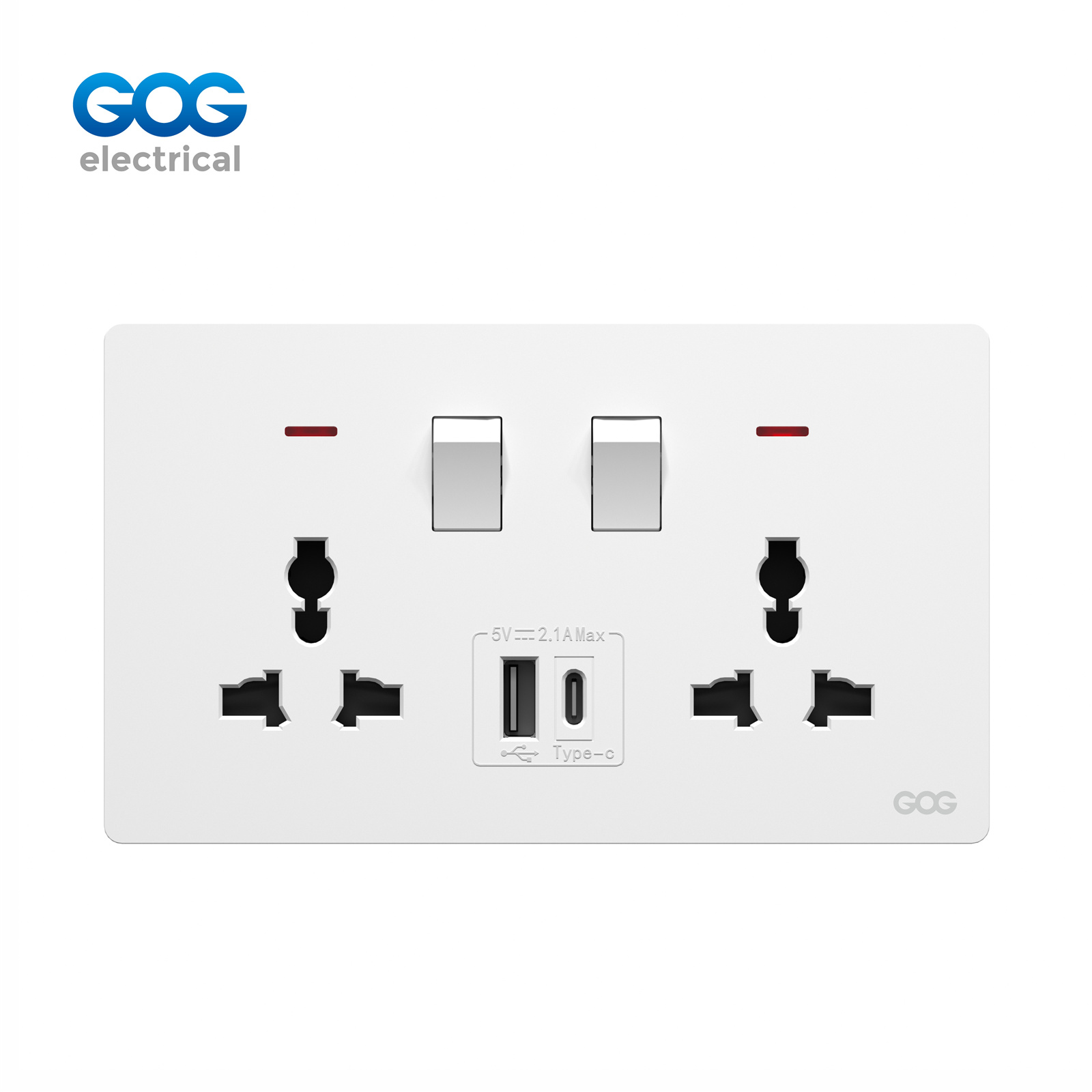

E492C
|
Series |
K2 series |
|
Item code |
E492C |
|
Description |
13A 2 gang DP swithced socket, 1 USB + 1 type C, neon |
|
Color |
White Gold Gray Black |
|
Current |
13A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 146mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
/ |
|
Socket inside material |
High purity 62 brass material 0.7 mm,integrated structure copper |
|
|
|
|
Standard |
IEC60884/BS1363/IEC61000-1:2016/IEC62680 |
|
Product lifetime |
30000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 5pcs in inner box, 50pcs in outer carton |

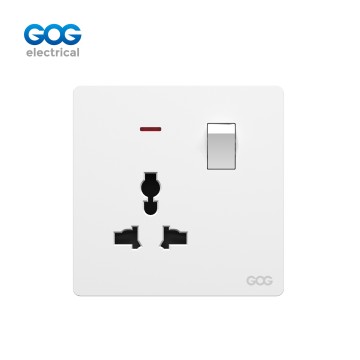

E407M
|
Series |
K2 series |
|
Item code |
E407M |
|
Description |
3pin multi switched socket with neon, SP (13A) |
|
Color |
White Gold Gray Black |
|
Current |
13A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
/ |
|
Socket inside material |
0.7 mm high phosphor copper, integrated structure copper. |
|
|
|
|
Standard |
IEC 60884 |
|
Product lifetime |
30000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |

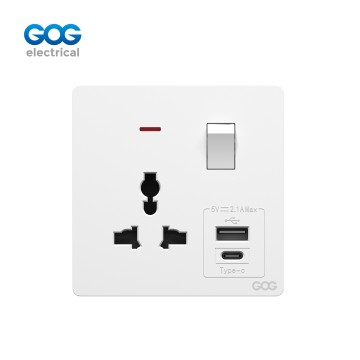

E587C
|
Series |
K2 series |
|
Item code |
E587C |
|
Description |
13A 1 gang switched MF socket, 1 USB + 1 type C, neon |
|
Color |
White Gold Gray Black |
|
Current |
13A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 86mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
/ |
|
Socket inside material |
0.7 mm high phosphor copper, integrated structure copper. |
|
|
|
|
Standard |
IEC 60884/IEC61000-1:2016/IEC62680 |
|
Product lifetime |
30000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 10pcs in inner box, 100pcs in outer carton |
E408M
|
Series |
K2 series |
|
Item code |
E408M |
|
Description |
13A 2 gang switched MF socket, neon |
|
Color |
White Gold Gray Black |
|
Current |
13A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 146mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
/ |
|
Socket inside material |
0.7 mm high phosphor copper, integrated structure copper. |
|
|
|
|
Standard |
IEC 60884 |
|
Product lifetime |
30000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 5pcs in inner box, 50pcs in outer carton |
E588C
|
Series |
K2 series |
|
Item code |
E588C |
|
Description |
13A 2 gang switched MF socket, 1 USB + 1 type C, neon |
|
Color |
White Gold Gray Black |
|
Current |
13A |
|
Voltage |
250V~ |
|
Dimensions |
H 86mm x W 146mm |
|
|
|
|
Material details |
|
|
The front panel |
Imported high-transparent, high-strength PC |
|
Base |
Imported high-transparent, high-strength PC |
|
Middle plate |
Full plastic middle plate / Steel-plastic combination middle plate |
|
Switch inside material |
/ |
|
Socket inside material |
0.7 mm high phosphor copper, integrated structure copper. |
|
|
|
|
Standard |
IEC 60884/IEC61000-1:2016/IEC62680 |
|
Product lifetime |
30000 times |
|
Warranty |
12 years |
|
MOQ |
2,000 pcs/ item |
|
Package |
1pcs with individual plastic bag, 5pcs in inner box, 50pcs in outer carton |
